🔥 Explosion-proof certification: Ex d IIC T6 📐 70 bar rated pressure 🔩 1/4" ferrule fitting 📊 4–20 mA explosion-proof transmitter, accuracy 0.5% FS |
Parameters
| Parameters | Specifications |
| Product Name | Explosion-Proof Ultra-High-Purity Gas Control Panel |
| Number of Channels | Single-channel |
| Maximum Inlet Pressure | 70 bar / 1000 PSIG（Pressure-reducing valve model R11, maximum pressure 3,500 psi） |
| Outlet Connection | 1/4" ferrule fitting（Size Optional） |
| Body Material | 316L stainless steel |
| Pressure Transmitter | 4–20 mA two-wire, 24 V DC, accuracy ±0.5% FS |
| Explosion-Proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP66 |
| Suitable Media | Ultra-high-purity gases, corrosive gases, toxic gases |
| Leak Rate | < 1×10⁻⁹ atm.cc/sec He |
|
|
Key Components
| Component Name | Specifications/Description |

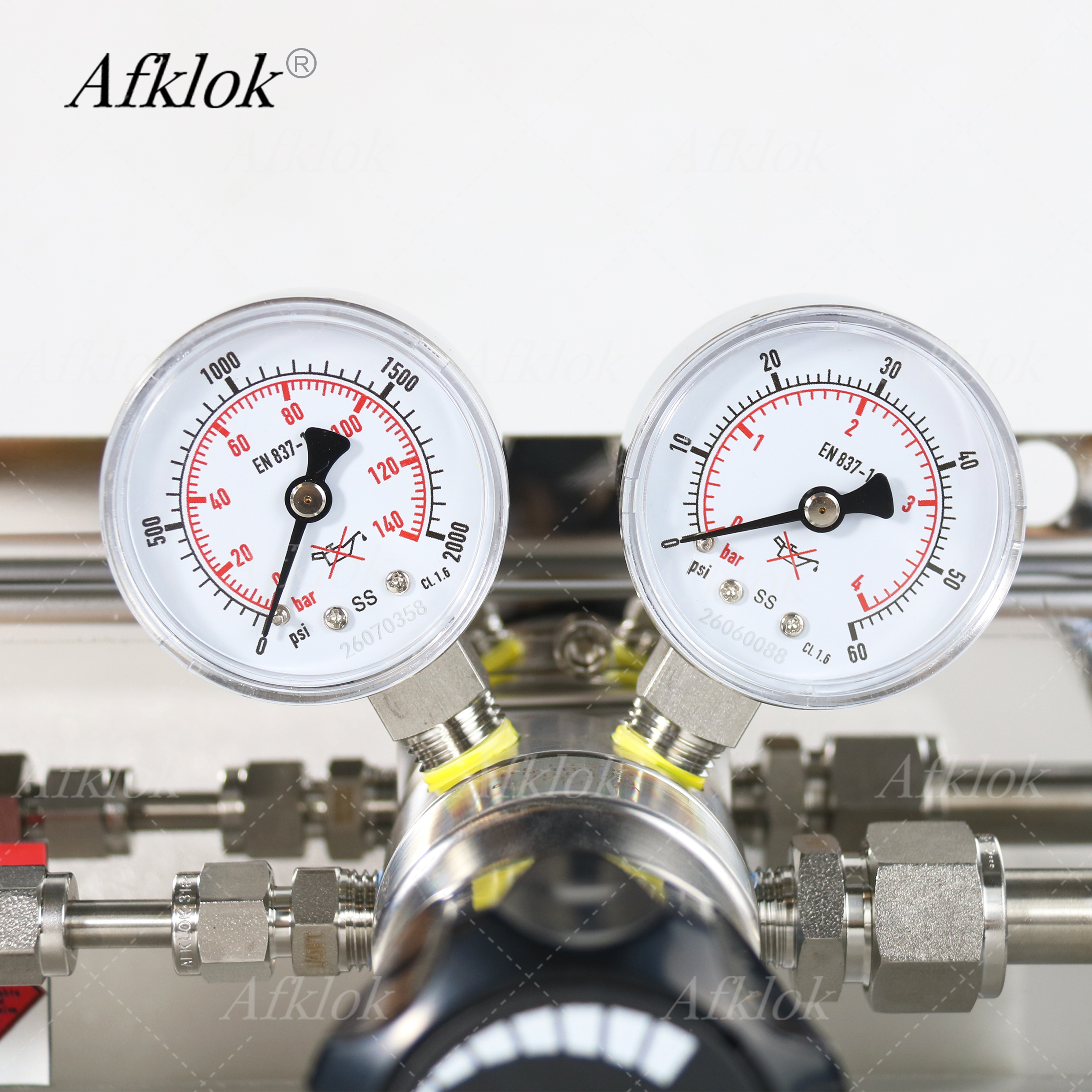

| Pressure Regulator with Pressure Gauge | R11 AFKLOK， inlet 0-2000psi，outlet 0-60psi |
| Pressure Transmitter | 4–20 mA, 4-wire, 24 V DC, accuracy ±0.5% FS, explosion-proof certified |
| Ball Valve | AFKLOK，3000psi，SS316 |

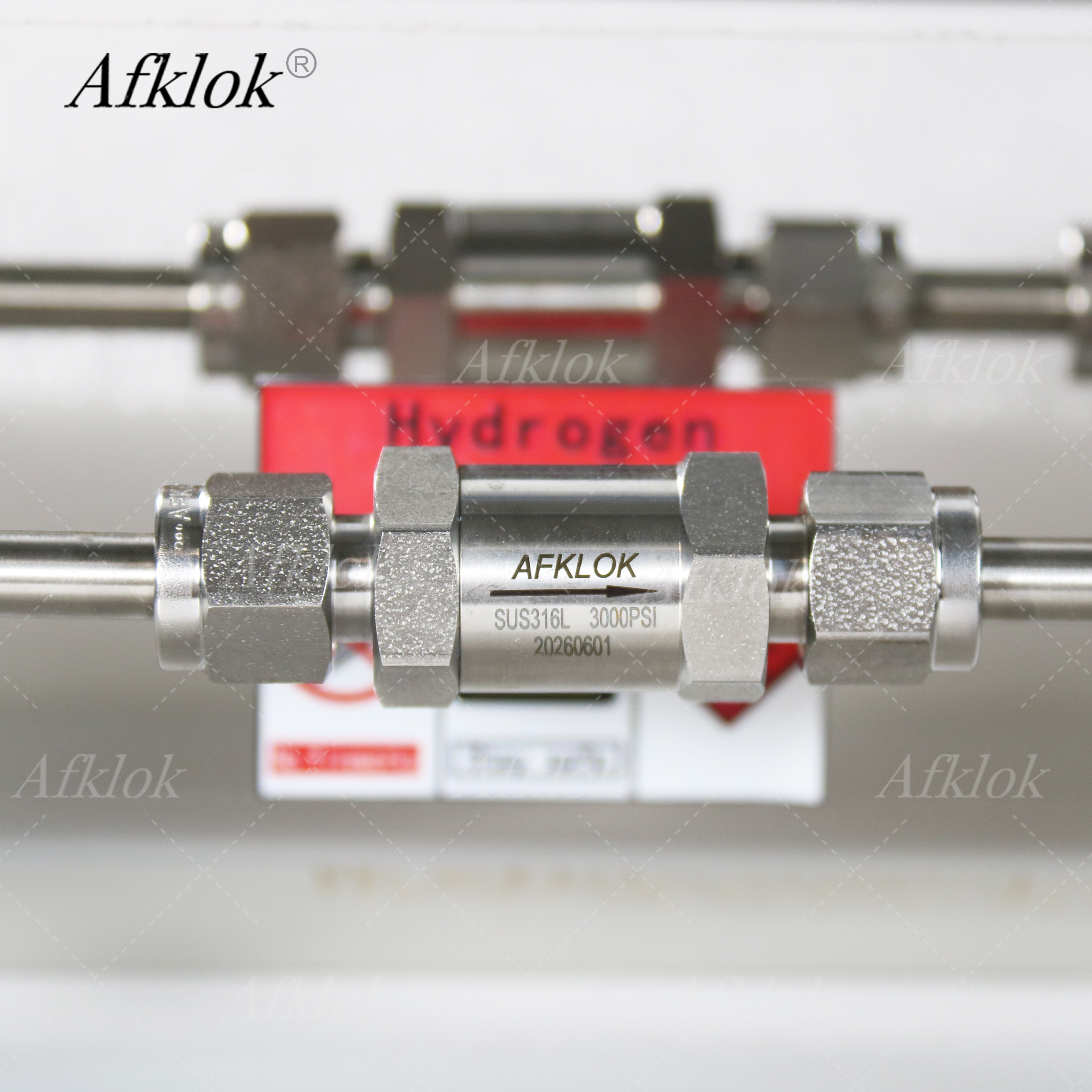

| Check Valve | AFKLOK，3000psi，SS316 |
| Pipe Fitting | Inlet：1/4" Ferrule，316L SS，Outlet：1/2'NPT Female |
| Piping | 1/4in，wall thickness 1.65 mm，Electrolytic Polishing |
| Pipe Clamp | Aluminum |
| Panel | SS304 |
After-Sales and Service
Minimum Order Quantity (MOQ)
Standard products have a minimum order quantity of 1 set, and we support small-batch purchases. If you require non-standard customization (such as special interfaces, specific valve brands, or custom panel sizes), please let us know your specific requirements; our technical team will evaluate them and provide feedback.
Standard Lead Times
Standard Products (in stock): Shipment within 5–7 business days
Standard Products (out of stock): 15–20 business days
Customized Products: 25–35 business days (depending on complexity)
For rush orders, please confirm with customer service before placing your order; we will do our best to coordinate priority production scheduling.
After-Sales Service
Warranty Period: 24 months from the date of shipment (excluding damage caused by human error)
Warranty Coverage: Panel body and internal components (excluding consumables and external piping)
Quality Issues During Warranty Period: Free repair or replacement
Beyond Warranty Period: Paid repair services are available; fees are charged based on the actual repair work performed
Technical Support
Product installation guide provided (digital version included with shipment)
Remote technical support (WeChat/email/phone)
On-site installation guidance can be arranged upon request; an engineer will visit your location (additional fees apply)
