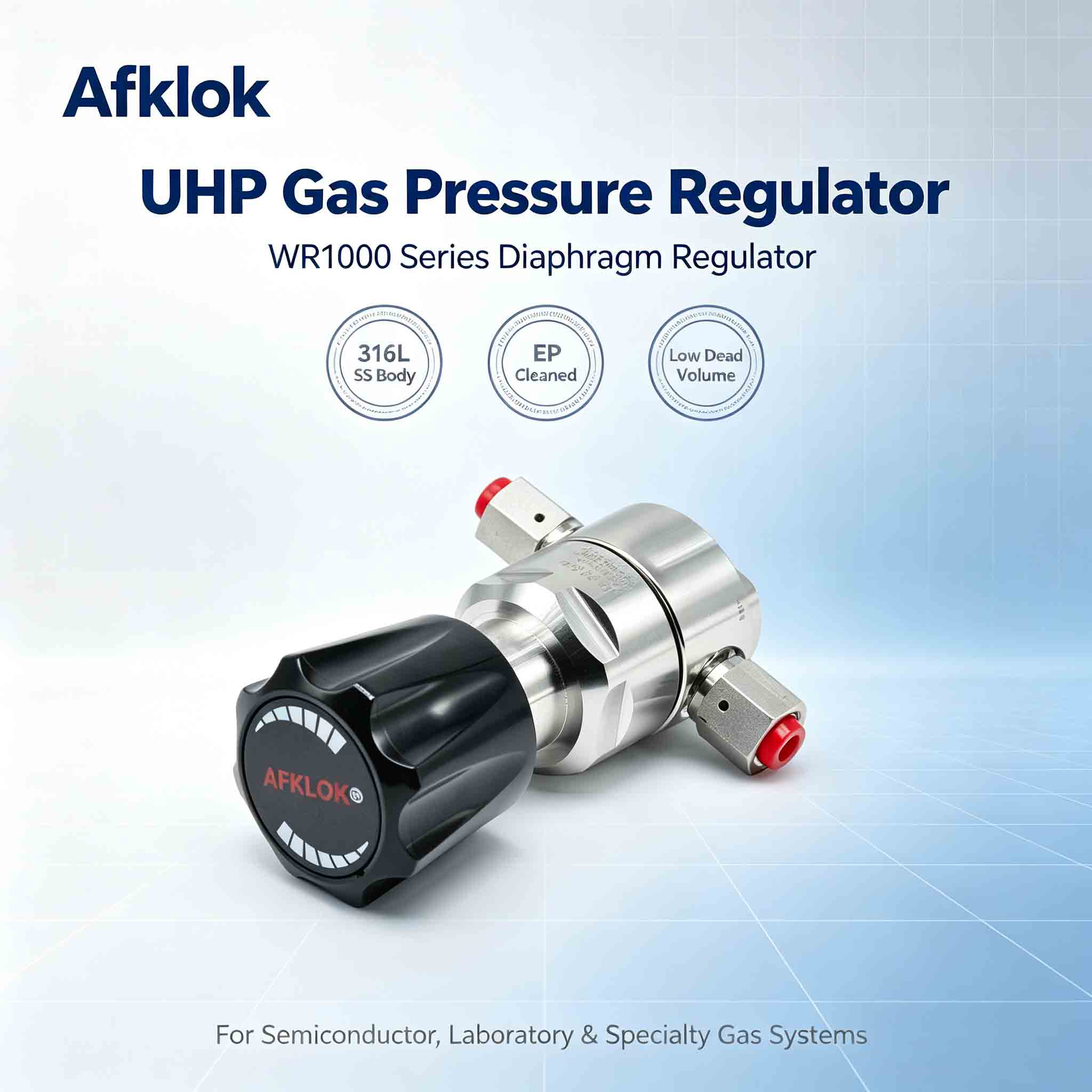

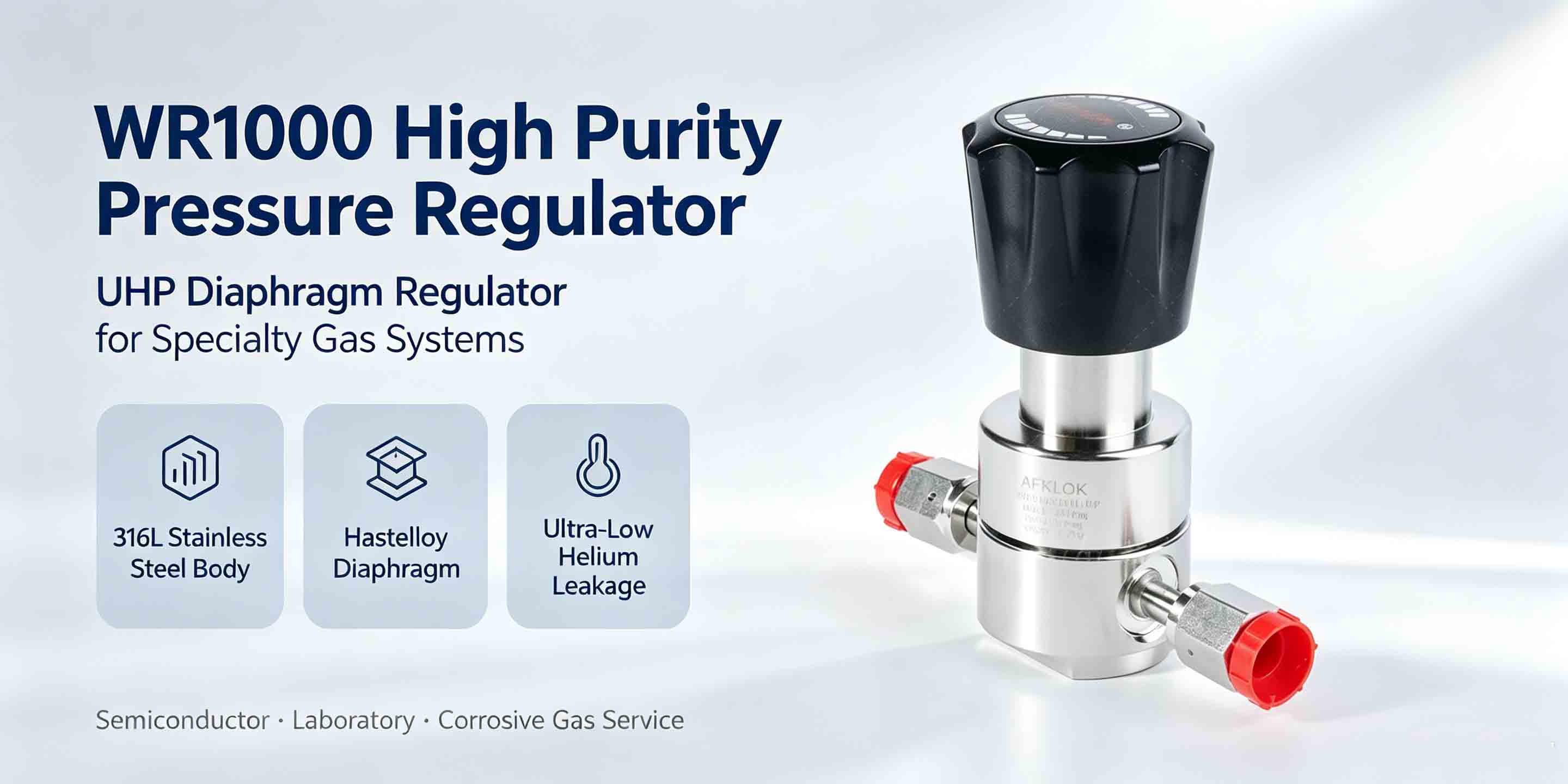

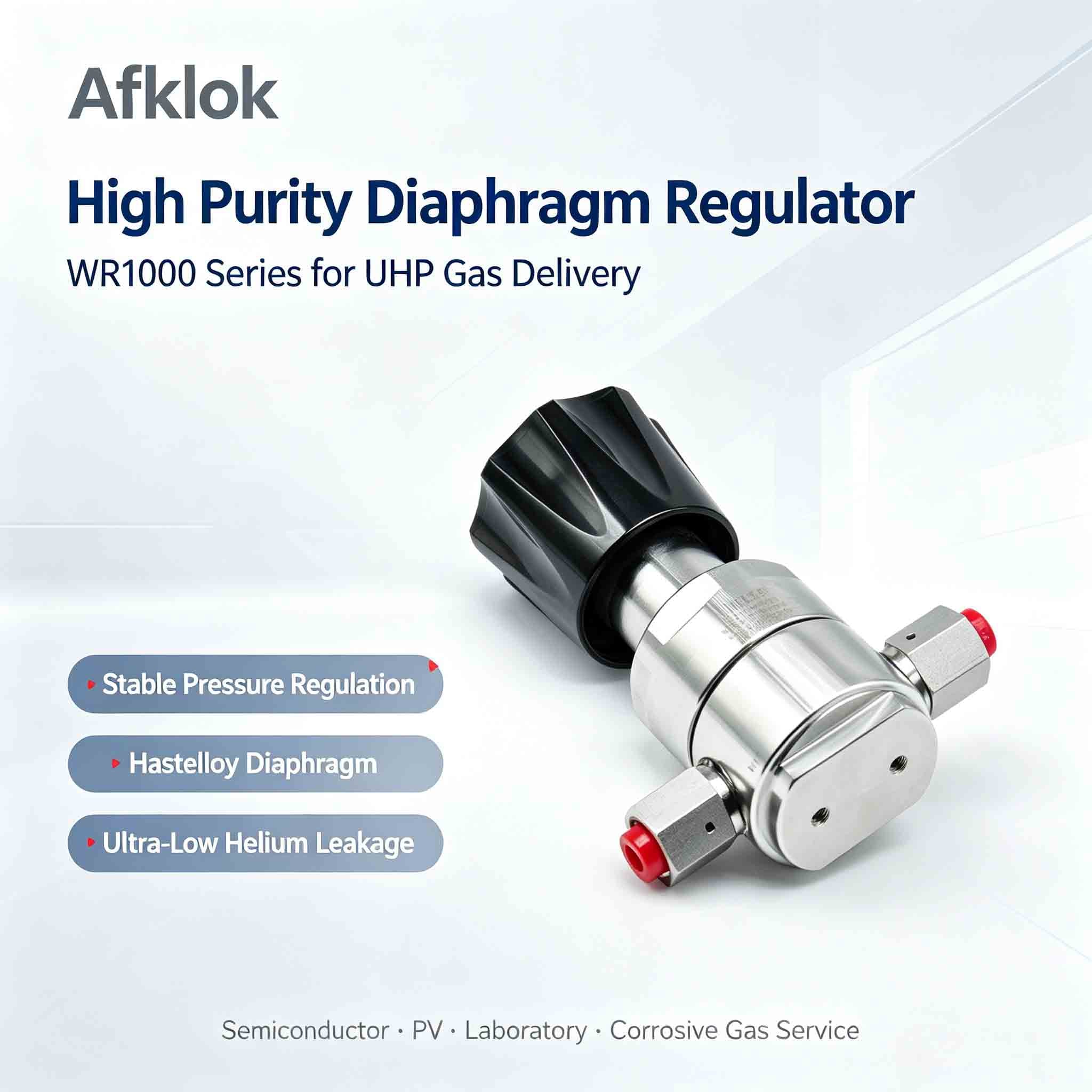

316L Stainless Steel High Purity Pressure Regulator WR1000 EP Surface For Corrosive Toxic Specialty Gas Delivery

Advantages of EP Grade Pressure Regulator:

1. excellent sealing: VCR fittings provide highly reliable sealing to prevent gas or liquid leakage, which is critical in applications where sealing is critical.

2. high cleanliness: its design helps to reduce the accumulation of impurities and contaminants, to ensure the purity of the media flowing through the regulator, suitable for the strict requirements of the media purity of the industry, such as semiconductor manufacturing, pharmaceuticals and so on

3. easy installation and removal: the structure of the VCR fitting makes the installation and removal process relatively simple and fast, saving operating time and labor costs

4. strong stability: can be used in the long-term to maintain a stable connection performance, reduce the connection problems caused by unstable pressure regulation

5. Good corrosion resistance: usually made of corrosion-resistant materials, able to maintain good performance in harsh chemical environments

6. standardization and compatibility: in line with specific industry standards, and other related equipment and components have good compatibility, easy system integration and expansion.

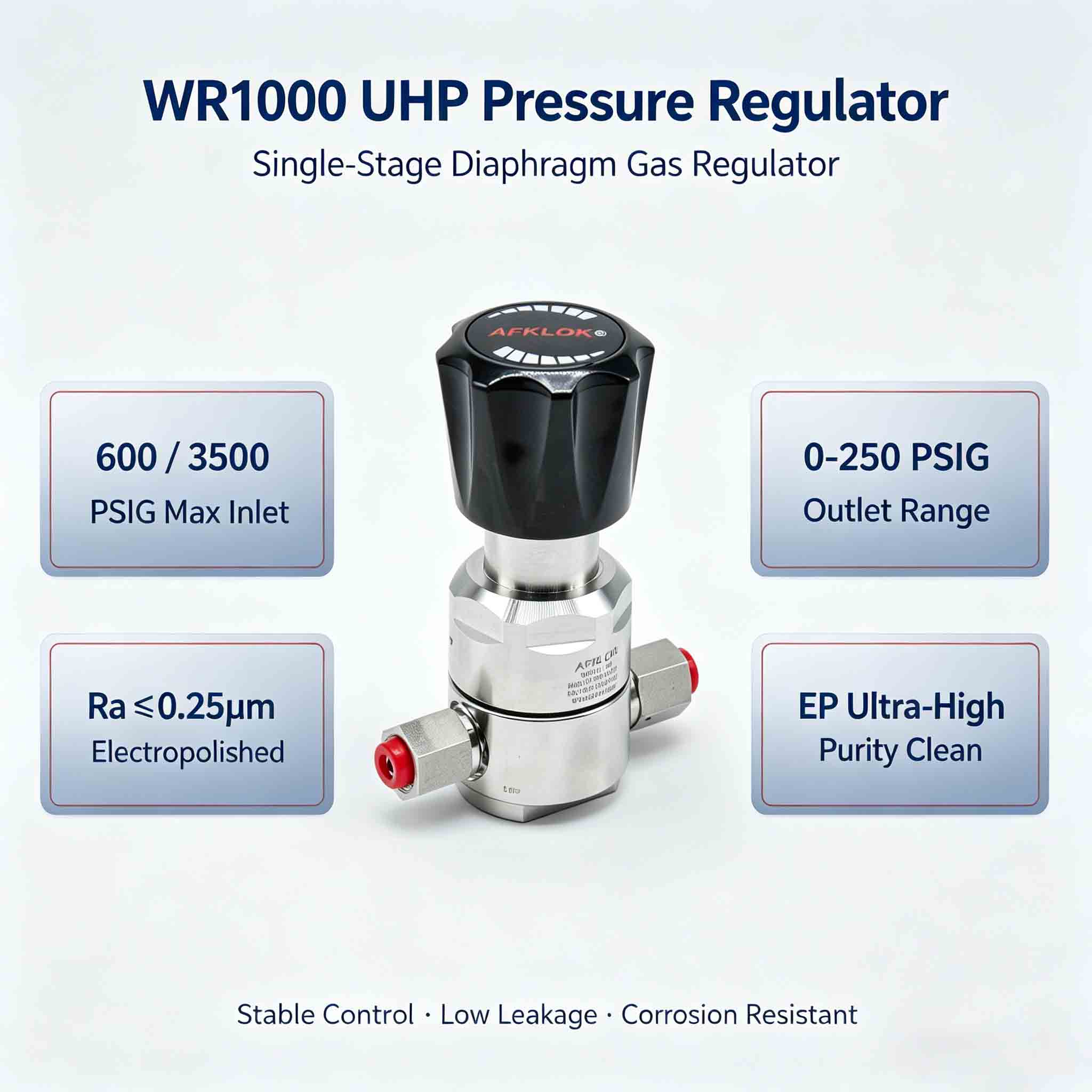

Maximum Inlet Pressure: 600 PSIG / 3500 PSIG (optional)

Outlet Pressure Regulation Range: 0–30 / 0–60 / 0–100 / 0–150 / 0–250 PSIG

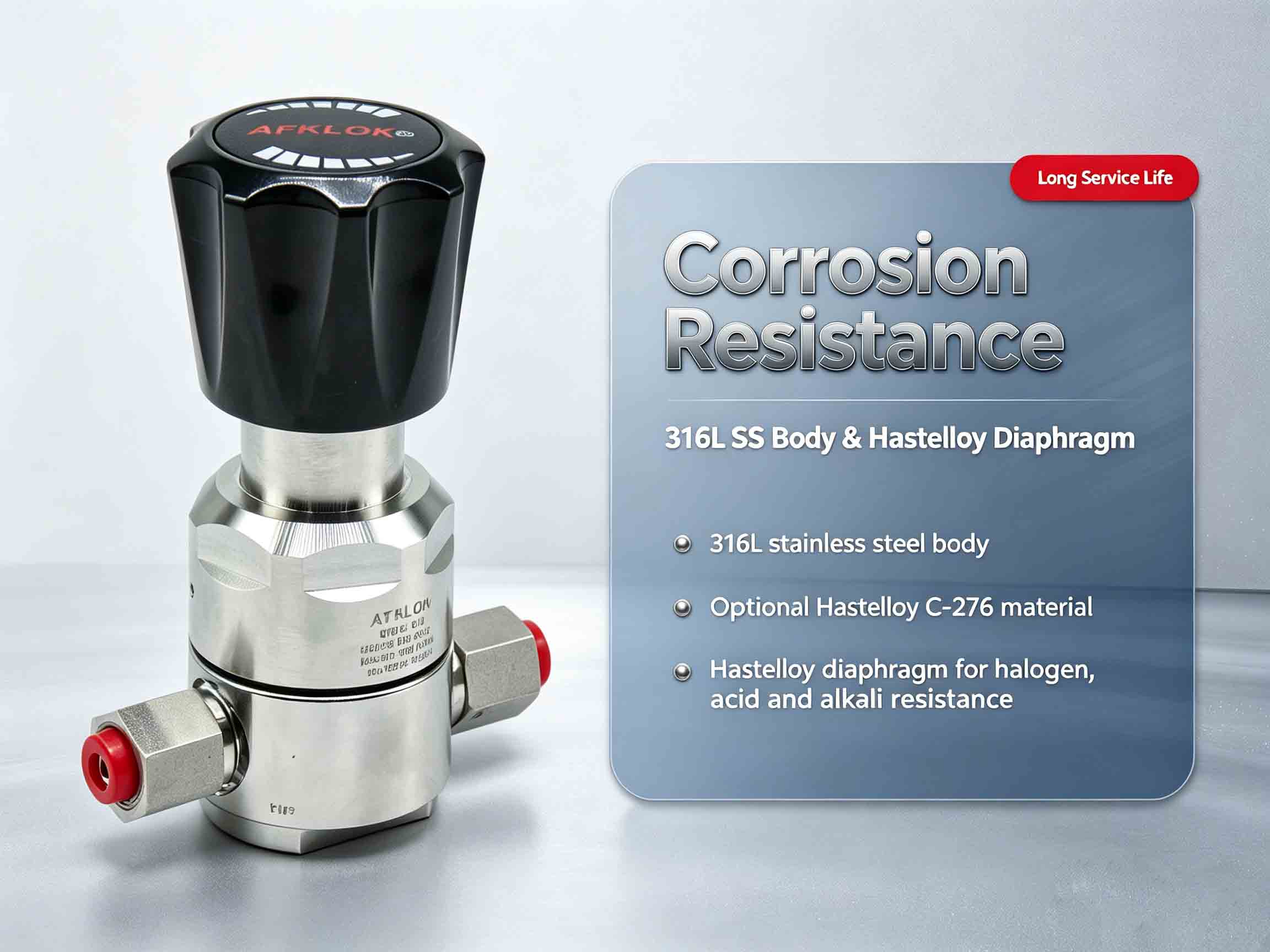

Valve Body Material: 316L Stainless Steel (6L) / Hastelloy C-276 (HC)

Seat: PCTFE | Diaphragm: Hastelloy

Operating Temperature: -40°C to +74°C

Flow Coefficient Cv: 0.20 (600 PSIG inlet); 0.09 (3500 PSIG inlet)

Cleaning Standard: EP Ultra-High-Purity Cleaning

Standard Ports: 1/4" VCR, various fittings available

Installation Precautions:

1. Clean environment: Installation should be done in a clean environment to avoid contamination of the fitting and the inside of the regulator by dust, impurities, etc

2. Inspection of components: Before installation, carefully inspect each component of the pressure regulator and VCR fitting to ensure that there is no damage, deformation or defect

3. correct selection: according to the actual working pressure, media characteristics and flow requirements, select the appropriate specifications and models of the pressure regulator and VCR fittings.

4. installation direction: follow the product specification to ensure the correct installation direction

4. Installation direction: Follow the installation direction specified in the product manual to ensure that the regulator works properly

5. sealing gasket: make sure to use the appropriate sealing gasket, and check its integrity and quality

6. Tightening strength: When connecting VCR fittings, use appropriate torque tools and tighten the nuts according to the specified torque values to avoid over-tightening or over-loosening which may cause leakage or damage

7. Anti-loosening measures: Take necessary anti-loosening measures, such as using anti-loosening washers or applying anti-loosening glue

8. Pipe cleaning: The inside of the connected pipes should be cleaned to prevent foreign matter from entering the regulator

9. Pre-charging media: For some special media, it may be necessary to pre-charge the regulator before installation.

10. Post-installation inspection: After installation, perform a sealing test to check for leaks and to verify that the pressure regulation is functioning properly

1. What is the difference between VCR fitting pressure regulators and regulators with other types of fittings?

Pressure regulators with VCR fittings offer higher sealing performance, better cleanliness, and more precise connections to minimize leakage and contamination with impurities for applications where sealing and purity are critical, such as semiconductor manufacturing, pharmaceuticals, and other fields. Regulators with other types of fittings may perform slightly less well in these areas./dd>

2. How can I tell if a pressure regulator with a VCR fitting is working properly?

You can determine this by first observing whether the pressure indicator readings are stabilizing at the set point; second, checking the connections for signs of leakage; and also by monitoring the flow and pressure changes in the system to determine the regulator's operating status.

3. Do VCR fittings require regular maintenance?

Yes, it is recommended to periodically check the tightness of the VCR fitting, the condition of the sealing gasket, and clean the fitting surface to ensure good sealing and connection performance.

4. If the pressure regulator fails, how do I troubleshoot it?

First check the connections for leaks, then see if the regulator's adjusting mechanism is flexible and if the sensor is working properly. If the problem remains unresolved, in-depth troubleshooting by a professional using specialized testing equipment may be required.

5. What are the limitations on the media that pressure regulators with VCR fittings can be used with?

Generally applicable to a variety of gases and liquids, but for strongly corrosive, high viscosity or more particulate impurities in the media, may require a special type or additional protective treatment.

6. How can I avoid damaging the VCR fittings during installation?

Use the correct installation tools, follow the specified installation steps and torque, and avoid using excessive force or improper installation methods.

7. Can I adjust the adjustment range of the pressure regulator myself?

Yes, in most cases, but follow the instructions in the product manual to make adjustments within the allowable range, and conduct tests after adjustment to ensure that the performance meets the requirements.

8. What is the life expectancy of the pressure regulator on the VCR fitting?

Service life depends on a variety of factors, such as operating environment, media characteristics, and maintenance. Generally, it can last several years with normal use and maintenance.

9. What should I pay attention to if I need to replace a VCR fitting?

Select a product with the same specifications as the original fitting and reliable quality, and make sure the installation process is correct, and perform a sealing test after replacement.
